Product Details:
Payment & Shipping Terms:
|
| Standard: | CE Approved | Direction: | Can Be Set As Single Or Double |
|---|---|---|---|
| Flap Material: | Crystal Acrylic | Drive Motor: | DC 24V |
| Power Supply: | AC220±10%V 50Hz/AC110±10% 60Hz | Product Type: | Full Height Sliding Gate |
| High Light: | commercial swing gate,auto door remote control |
||

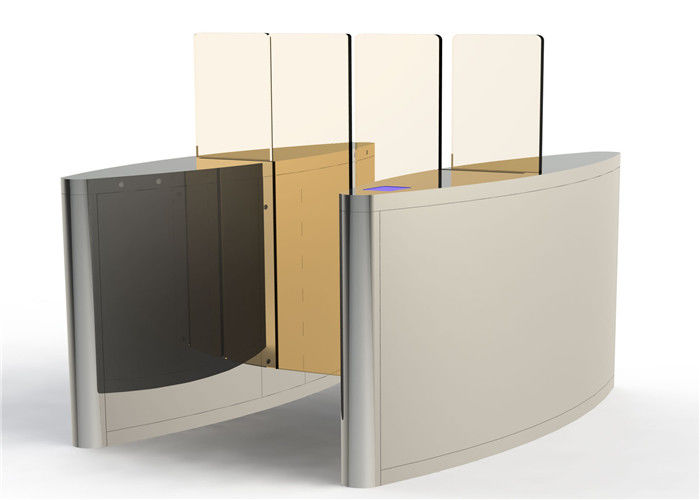

Optical glass panel 304 stainless steel cabinet pedetrian control waist height sliding gate access control turnstiles
Introduction of half height sliding gate:
1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.
2. Program operation mode of equipments through the little button inside the main board.
3. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.
Applications of half height sliding gate:
Sinomatic half height sliding gate is suitable for indoor or outdoor with tent. They are widely used in airport, railway station, metro station, bus station, stadium, supermarket, check point, book stores, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.
Features of half height sliding gate:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Specifications of half height sliding gate:
|
Item |
Specification |
|
Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
|
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
|
Motor voltage |
DC 24V (brush motor) |
|
Max flow rate |
25 to 30 person per minute |
|
Flap opening / closing time |
1s |
|
Reset time when power on |
3s |
|
Working temperature |
-20°C~60°C |
Case of full height sliding gate:
Why choose us:
1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
