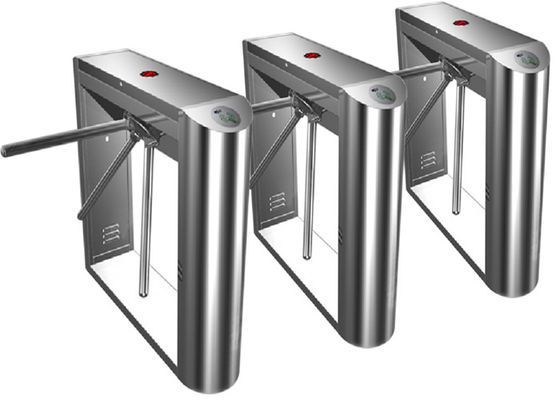

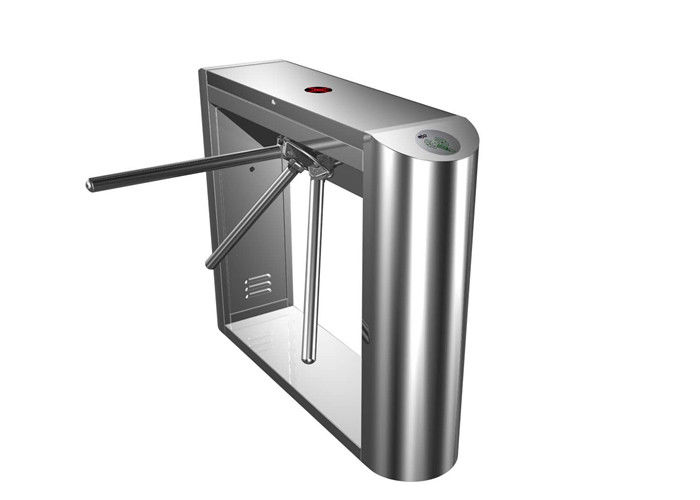

RFID Tripod Barrier Gate

Semi automatic electric arc waist height tripod turnstile gate with RFID card reader

Introduction of Tripod Turnstile Gate:

RFID card reader tripod turnstile gate model can connect to any kinds of controller and various consumption devices. Different identification systems can be connected like ID card reader, IC card reader, fingerprint and Iris etc.

Applications of Tripod Turnstile Gate:

RFID card reader tripod turnstile gate is mostly for indoor usage (If used outdoor, better use SS316 and must with tent). Nowaday, more and more buildings use tripod turnstile for crowd control.

It can be applied to wharf, metro station, tourist attraction, entrance and exit management channel of factory

time attendance, access control, consumption management for enterprise or business buildings

Features of Tripod Turnstile Gate:

• Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
• If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
• Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
• Working environment: indoor(outdoor use shall stand awning)
• Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact.
• Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching.
• Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates.
• Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation.
• Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing.
• Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
• Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
• Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

• Auto replacement function, reposition after person pass by.

• Anti tail function auto-lock once turn 120°.
• Arms auto drop when power off , insure unblocked when accident.
• Standard electronic interface, remote control through internet which is also could connect varieties of card readers and receive relay signal to work.
• Diverse control mode optional, changeable due to varying, convenient for your management.
• Auto alert error function, comfort for user maintain and operation.

Product details of Tripod Turnstile Gate:

Specifications of Tripod Turnstile Gate:

Cases of Tripod Turnstile Gate:
