Product Details:
Payment & Shipping Terms:
|
| Arm Opening / Closing Time: | 1S | Arm Closing: | 1S |
|---|---|---|---|
| OEM/ODM: | Supported | Arm Length: | 450mm(default) |
| Direction: | Single Or Bi-direction | Size Of Housing: | 1200*165*1000mm |
| Max Flow Rate: | 25 To 30 Person Per Minute | Material: | SS304 |
| Package: | Wooden Box | ||
| High Light: | one way gate,commercial swing gate |
||

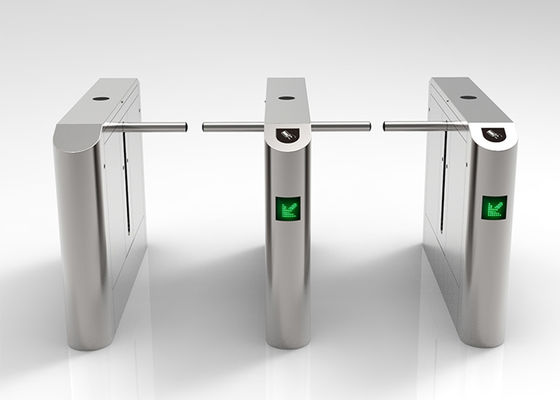

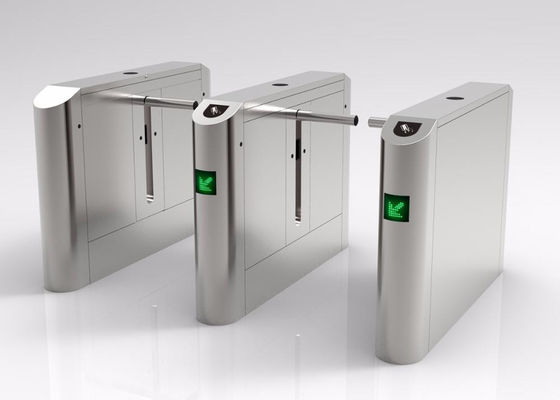

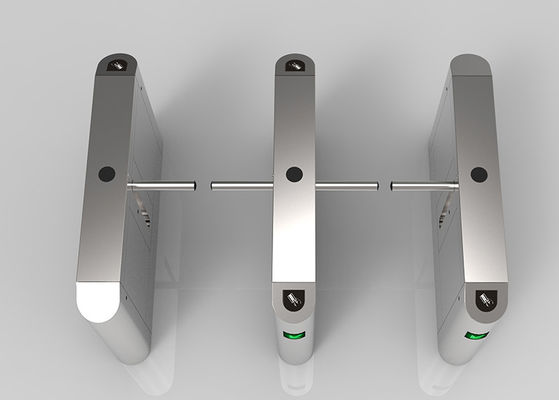

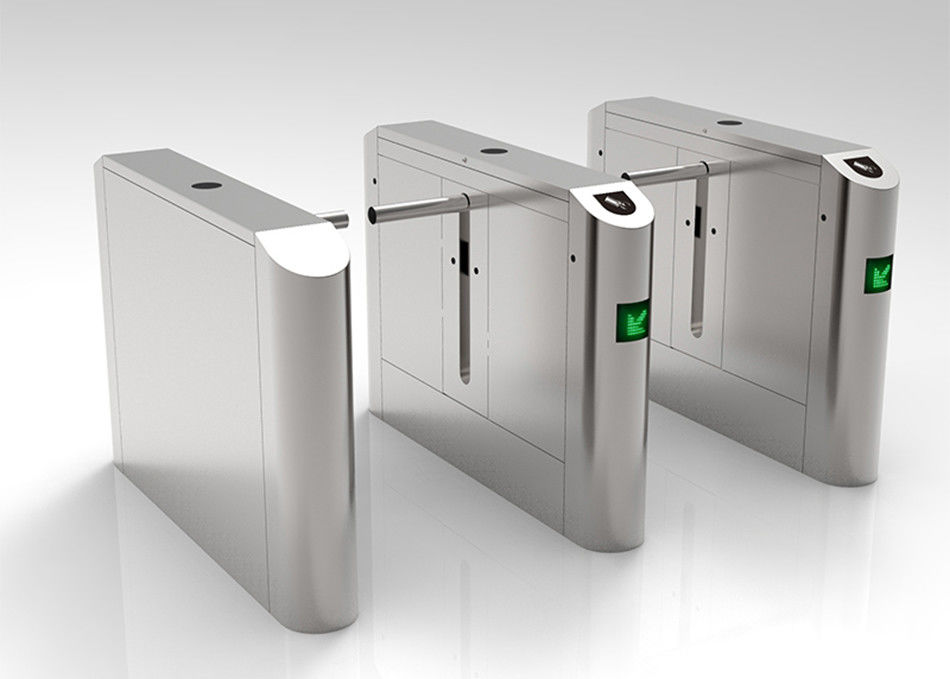

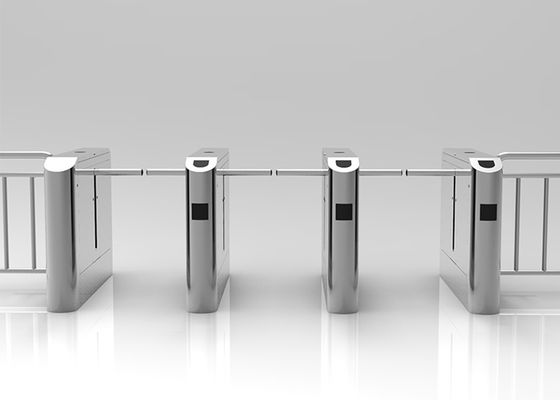

Slim profile and stylish design SS304 cabinet remote control brushless motor drop arm turnstile
Introduction of Drop Arm Turnstile:
The SINOMATIC optical turnstile has a slim profile and a stylish design that enhances any access control installation.
With tandem motorized drop arms that quickly move down and into the cabinet, and the latest in optical detection technology, the SINOMATIC optical turnstile is an excellent solution for your entry control requirements.
Features & functions
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gates)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).
9. Direction can be set as uni-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Support infrared photocell for anti-pinch and reset function
Specifications of Drop Arm Turnstile:
|
Power supply
|
AC220±10%V 50Hz/AC110±10% 60Hz
|
|
Power consumption
|
40W
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
|
Max flow rate
|
25 to 30 person per minute
|
| Housing dimension | 1200x165x1000mm |
|
Arm length
|
450mm(default)
|
|
Working temperature
|
-20°C~+60°C
|
|
Current
|
3A
|
|
Control circuit
|
DC24
|
|
Working humidity
|
0~95%RH
|
|
Time of opening or closing
|
less than 2S
|
| Normal life | 5 million times |
Cases reference
Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control
Why choose us:
1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
