Product Details:
Payment & Shipping Terms:
|
| Material Of Housing: | 304 Or 316 Stainless Steel | Max Flow Rate: | 25 To 30 Person Per Minute |
|---|---|---|---|
| Surface Treatment: | Wire Drawing | Direction: | Can Be Set As Single Or Double |
| Application: | Indoor/ Outdoor With Tent | Drive Motor: | DC 24V |
| High Light: | one way gate,auto door remote control |
||

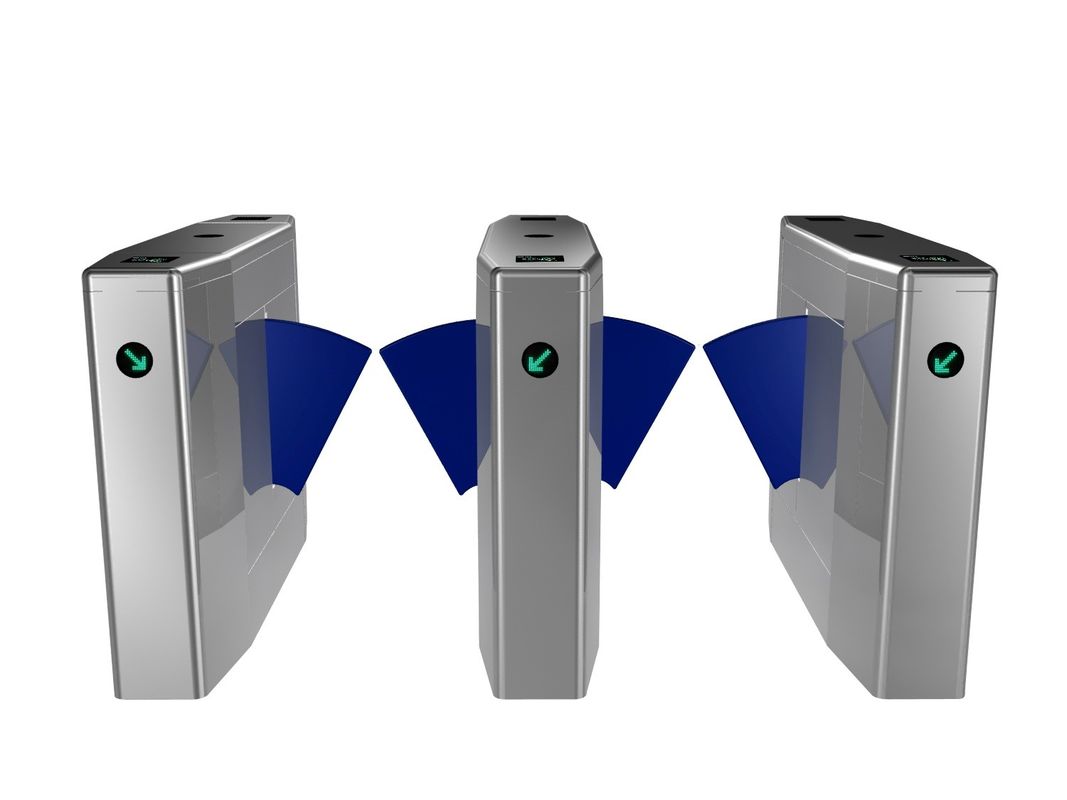

Optical CE Approved Flap Barrier Gate Half Height Turnstile With Led Indicator
Introduction of Flap Barrier Gate:
Applications of Flap Barrier Gate:
Sinomatic full automatic flap barrier gate are widely used in the following sites:
1. Government buildings
2. Banking buildings
3. Educational buildings
4. Office buildings
5. Gym/Stadium
6. Factory buildings
Features of Flap Barrier Gate:
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Specifications of Flap Barrier Gate:
|
Item |
Specification |
|
Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
|
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
|
Motor voltage |
DC 24V (brush motor) |
|
Max flow rate |
25 to 30 person per minute |
|
Flap opening / closing time |
1s |
|
Reset time when power on |
3s |
|
Working temperature |
-20°C~60°C |
Case of Flap Barrier Gate:
