Product Details:
Payment & Shipping Terms:
|
| Wing Width: | 270mm | Power Consumption: | 30 Watt |
|---|---|---|---|
| IR Sensor: | Yes | Power Supply Input: | 220V/110V ± 10% AC, 50 / 60Hz |
| Wing Height: | 150mm From Ground | Wing Panel: | 10mm Thickness Acrylic |
| Operating Voltage: | DC 24V | Max Flow Rate: | 25 To 30 Person Per Minute |
| High Light: | door control access systems,pedestrian access gates |
||

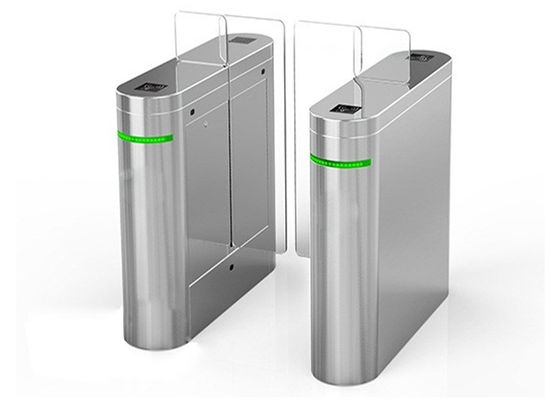

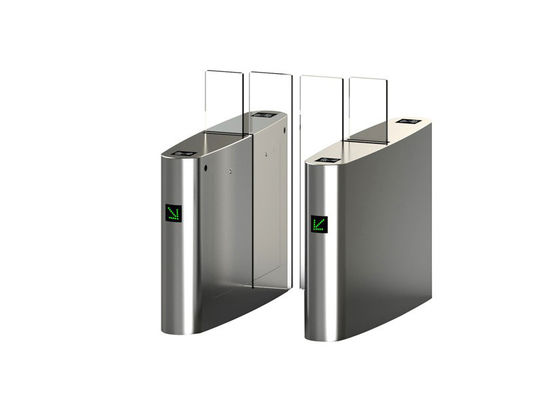

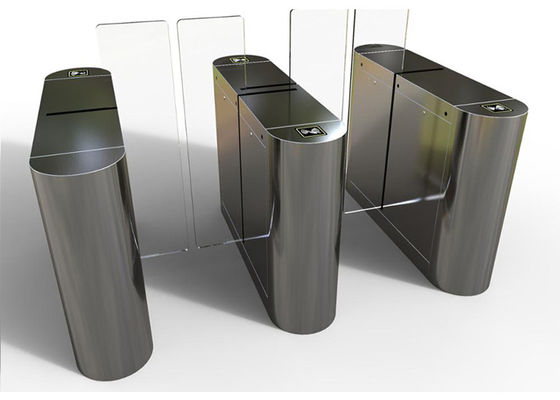

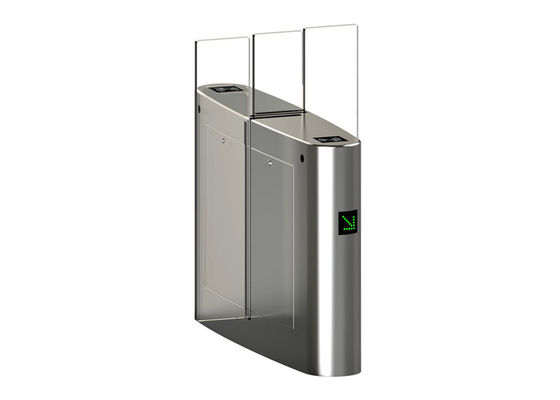

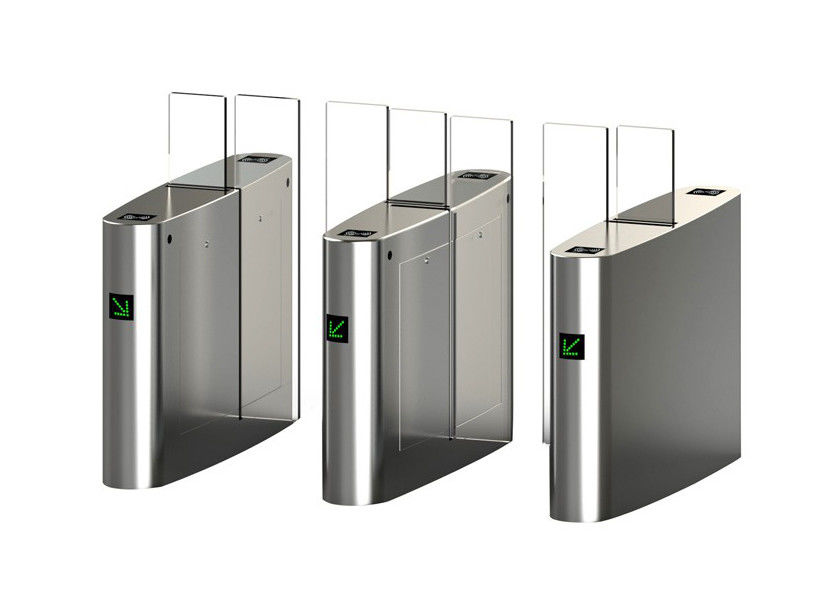

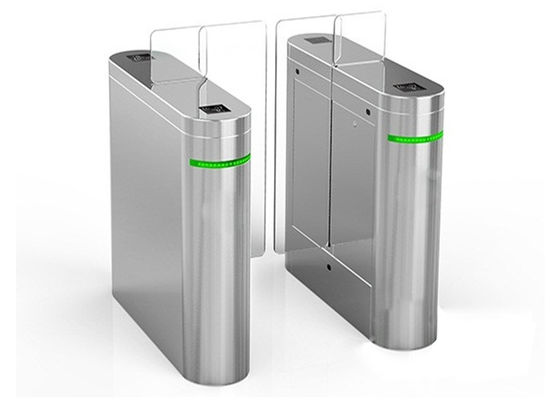

Full height automatic smart DC brushless motor glass sliding turnstile access control system
General introduction:
Intelligent speed gate is mainly used to prevent pedestrians illegally drilled or climbing places to implement the entrance and exit control management of high-tech products, its shape with international stainless steel profiles, fine craft, full-featured, nice, rust, durable, can resist external damage.The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.
Technicial specifications:
| Housing size | 1400 long * 300 wide * 1000 high (MM) |
| Working direction
|
Single or bi-direction |
| Housing material | 304 Stainless steel with the thickness of 1.5mm |
| Power supply | AC200±10％V/50±10％Hz |
| Driving electromotor | 24V DC |
| Input interface | relay switch signal or 12V level signal or pulse width> 100ms 12V pulse signal, drive current> 10mA |
| LED indicator | 2 |
| Card reader windows | 2 |
| Pass speed | 40 persons/min (normal open),25~30 persons/min(normal close) |
| Gate open, off time | 1~2s |
| The time required to enter the state after power on | 3s |
| Working environment | Indoor, outdoor (with a tent over) |
| Temperature | -20℃ to 60℃ |
| Relative humidity | ≤ 90%, no condensation |
Features:
1. Brake lever steering : one-way, two-way (optional)
2. Control mode: manual/ automatic (optional)
3. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
4. Working environment: indoor(outdoor use shall stand awning)
5. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;
6. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;
7. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates ;
8. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation ;
9. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
10. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements ; ( automatic type )
11. Anti-collision function: no credit card pedestrian push the brake lever , lock gates ;
12. Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates ;
13. Automatic reset function: by credit card is not specified , within the time gates back in situ cancel access .
