Product Details:
Payment & Shipping Terms:
|
| Material: | 304Stainless Steel | Power Supply: | AC220V±20%V, 50Hz |
|---|---|---|---|
| Size: | L1200*W300*H1000mm | Weight: | 70kg |
| Dam-board Color: | Clear Or Blue | Work Environment: | Indoor And Outdoor |
| Drive Mode: | DC Electric Motor | Output: | AC 24V,DC 12V, |
| High Light: | turnstile entry systems,front door security gate |
||

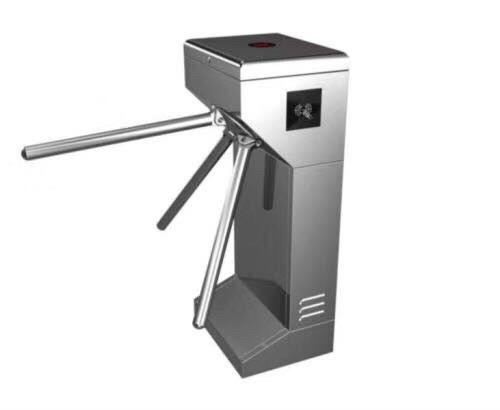

Tripod Automatic Systems Turnstiles Sunscreen Polishing Esd Turnstile System
1. With fault self-check and alarm prompt function, convenient for user maintenance and use.
2. It can be connected with any control signal or button and remote control output by any control device to achieve one-way and two-way control.
3. One-way and two-way free passage can be set arbitrarily.
4. Automatically reset every 120 degrees of rotation, the system will automatically cancel the authority of this passage when it doesn't pass within the specified time (adjustable delay).
5. High-intensity traffic light status indication.
6. Connect with fire alarm signal.
7. Accurate signal memory, when receiving legal signals multiple times in a row, it will automatically reset after the last person passes.
8. It will automatically give alarm prompt when illegal traffic or sluice gate.
9. Automatically drop the pole when power off, automatically load the pole when power is on.
10. Reader
| Frequency:13.56KHz | Response Time: Less than 0.2 seconds |
| DIM:Length85.6mm × Width53.98mm × Thickness1.8mm | cable length: 250mm |
| Material:Hard Shell = ABS；Cover Foil = PVC | Weight: 60g |
| Color:White , black, grey, blue, yellow | Wiring : |
| Power requirements: 5-16VDC at 100mA, A linear regulator is recommended | Red: Power 5-16V |
| Interface: Weigand | Black: Power ground |
| Reader range: 5 - 10 cm | Green: Wiegand output D0 |
| Frequency: 122-128KHz | White: Wiegand output D1 |
| Operation temperature: -30 C to +60 C | Brown: Green LED control |
| operationg humidity: 5%-95% relative humidity non-condensing | Blue: Buzzer control |
| Audio/Visual Indication: Green & Red and Buzzer signal output | Yellow: Hold |
LED/Buzzer function description
LED function: The LED color is normally in RED. It starts with 2 green flashes on power up the reader and remains RED. When a RFID proximity card is present to the reader, The LED will momentary flash green,this indicates that the card was read properly by the reader. When the LED control signal is active, the LED changes to green.
Beeper Function: Power up the reader, the beeper will active 2 times. When a RFID proximity card is present to the reader, a short beep will be emitter. This indicates that the card was read properly by the reader. When the Buzzer control signal is active, the buzzer will sound till buzzer control line is released
Hold function: when this line is asserted,(made low by HOST) the reader will buffer one card read (ignoring subsequent reads) until the line is released.(made high or open)
