Product Details:
Payment & Shipping Terms:
|
| Standard: | 304 Grade Stainless Steel | HS Code: | 86080090 |
|---|---|---|---|
| Application: | Indoor/outdoor | Direction: | Single Direction |
| Traffic Rate: | 30 Person Per Minute | Pillar Diameter: | 89mm |
| High Light: | manual gate barrier,manual swing barrier |
||

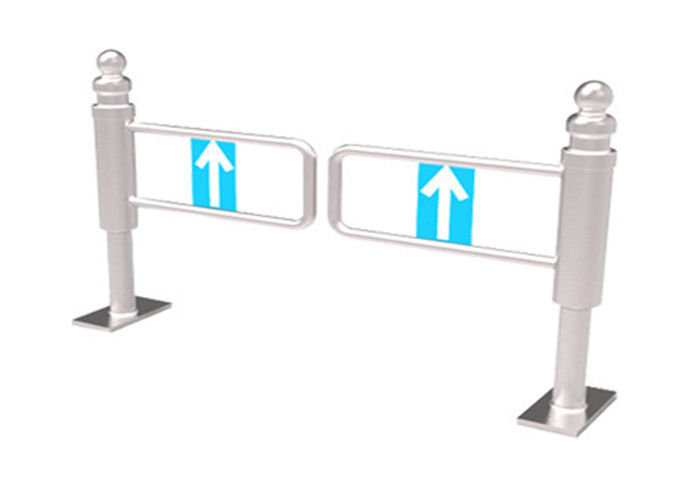

Single direction entrance waist high Pedestrian Swing Gate Mechanical manual control
Product descriptions:

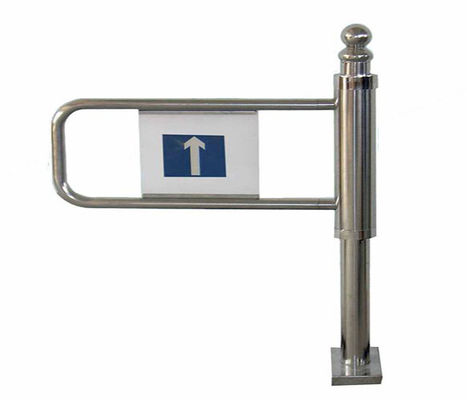

Manual swing gate turnstile is a single swing turnstile. The design is fine and light to save the space.
The structure has no electric devices, pure machine design and need no power supplying, pushing the swing gate to pass through. The swing gate is linked together with the movable cylinder and both rotate at the same time.
One unit of swing turnstile can make up a single swing passage. And also can custom-made two units to make up a double swing passage and make the double lane width.
Function Specifications:
Self-recovery function: The machine will be recovery automatically when the pass is completed.
Traffic mode: Single directions free pass, the other direction forbid to pass (The direction can be set, it normally use to the simple entry or exit. ) Operation mode: NO mode (Normal Open)
Framework Specifications:
| Cylinder material: 304 (default) / 316 grade stainless steel (optional) | Transit Speed: 25~30 passage / minute |
| Thickness of steel plate: 1.2mm (default) / 1.5mm (optional) | Operation temperature: -20° ~+60° |
| Finishing: Brushed surface (default) / Polishing surface / electrofacing / baking finish (optional) | Relative humidity: 0-95% ( Not freezing) |
| Swing gate material: 304 (default) / 316 grade stainless steel (optional) | Work Environment: Indoor / outdoor |
| Lane width: 600mm (default) / 800mm (max) | Alternative Materials, Finishes and Custom Design |
| Swing degree: 90° | Water-proof and dust-proof design: Systems grade IP55 |
Model Applications:
Commercial service occasion: Supermarket, market center, etc
Transport station: Bus station, etc
Entertainment occasion: Park, etc
Product size:
