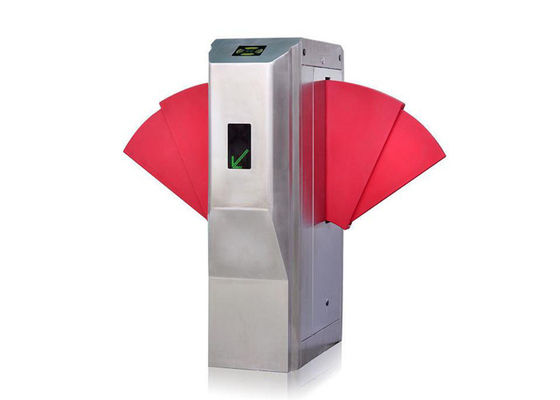

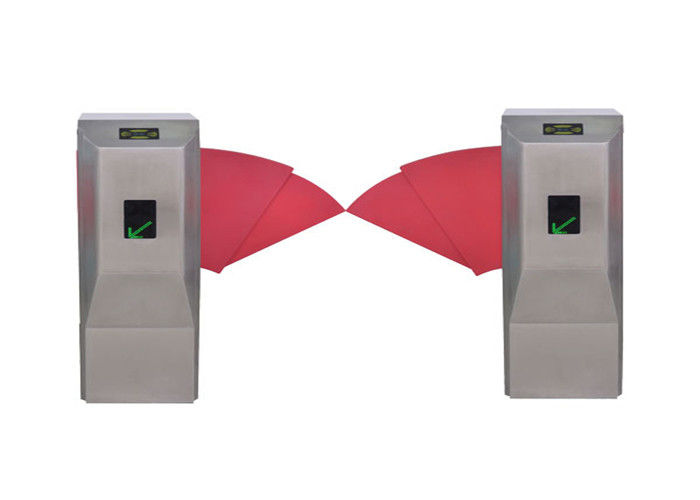

PU Foam Flap Turnstile Gate
-
-
Large Image :
PU Foam Flap Turnstile Gate
|
Product Details:
| Place of Origin: |
China mainland |
| Brand Name: |
OEM |
| Certification: |
CE/ ISO |
| Model Number: |
OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiable |
| Packaging Details: |
Wooden Box |
| Delivery Time: |
5-10 working days after payment received |
| Payment Terms: |
T/T, Western Union, MoneyGram |
| Supply Ability: |
3,000pcs per month |
|
Detailed Product Description
| Material Of Case: |
304 Stainless Steel |
Flap Material: |
PU Foam |
| Flap Lenth: |
440mm |
Working Humidity: |
0-95%RH |
| Direction: |
Can Be Set As Single Or Double |
Access Device Input Voltage: |
Dry Contact |
| Flap Opening / Closing Time: |
1s |
Reset Time When Power On: |
3s |
| High Light: |
turnstile flap barrier, flap barrier system |
Electronic Intelligent Flap Barrier Gate Turn Stile Door With Telescopic Wings
Specifications of Flap Turnstile Gate:
| Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
| Motor voltage |
DC 24V |
| Control input |
Dry contact |
| Direction |
Can be set as single or double |
| Max flow rate |
30 to 40 person per minute |
| Flap openning/closing time |
1s |
| Flap lenght |
440mm |
| Flap material |
PU foam |
| Working temperature |
-25°C~+50°C |
| Working humidity |
0~95%RH |
| Application |
Indoor/ outdoor with tent
|
Features of Flap Turnstile Gate:
- a compact electro-mechanical design with unique drive and a self-lock mechanism
- automatic detection for malfunction.
- Channel width: less than 550 (mm).
- Brake lever steering : one-way, two-way (optional).
- Control mode: manual/ automatic (optional).
- The electric control adopts DC motor to drive stable and reliable, and has low failure rate.
- Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
- In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
- The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
- Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
- The bicycle delay function: prevent the gate from hitting the bicycle;
- Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
- The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
- Various control functions: external button, remote control, bar code, IC or ID, etc.
- Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
- Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
Case of Flap Turnstile Gate:
