Product Details:
Payment & Shipping Terms:
|
| Material: | 304 Stainless Steel | Standard Size: | L1200mm*W280mm *H990mm |
|---|---|---|---|
| Driving Motor: | 24V DC Brush Motor | Channel Width: | 530-830mm |
| Working Life: | 5 Millions | Pass Speed: | 30 Persons/min |
| Guarantee: | 12 Months | Working Environment: | -30℃～70℃ |
| High Light: | manual swing arm gate,manual swing barrier |
||

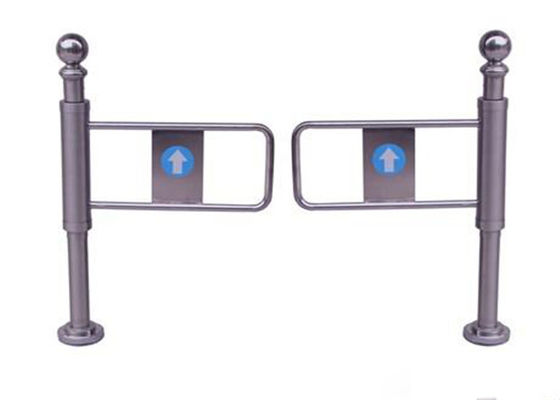

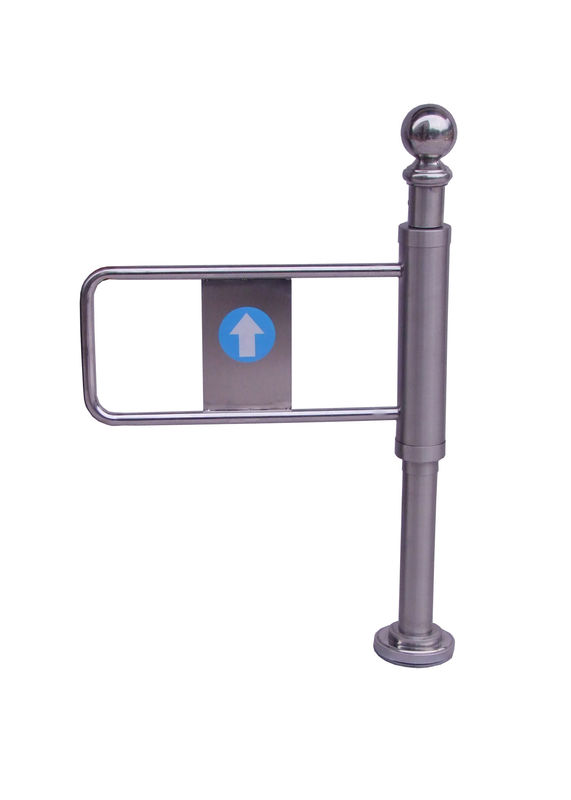

Mechanical Opening Card Access Control Wide Channel Swing Gate Turnstiles For Handicapped
| Description | Parameters |
| Item / Model | RNCF2008J |
| Running life | No more than 5 millions |
| Working voltage | AC220v±10% 50Hz 100w |
| Pass Speed | not more than 30 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 2~3S/It is adjustable |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm |
| Length of the bar | 250mm |
| Working Environment | indoor/out(with a tent over)-10°C~70°C |
Product Description
The Rotogate offers a cost effective and versatile solution to controlling entrance/exit to any location. This simple, versatile design of the Rotogate presents a secure and stylish solution that compliments many locations, particularly those which experience high levels of pedestrian traffic.
Our Rotogateis packed with many features that make access control more integrated and less obtrusive. It has the flexibility to be integrated with a variety of control systems from a simple manually operated push button to more sophisticated fully automatic ultrasonic, overhead sensors or autosensor devices - see our information on control mechanisms for further information. Connection to a customer’s own bespoke control system, e.g. fire alarm, computer system, etc. is also possible.
Standard Functions & Features Of Swing GateTurnstiles
1. Automatically reset , lock automatically Provide normally open / normally close to satisfy management request.
2. destrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
3. Equipped with international interface.
4. (Optional) Support gate open while power failure and recover N/C mode after power on.
5. One direction or bi-direction is optional.
6. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
