Product Details:
Payment & Shipping Terms:
|
| Arm Opening / Closing Time: | 1S | Arm Closing: | 1S |
|---|---|---|---|
| OEM/ODM: | Supported | Arm Length: | 450mm(default) |
| Direction: | Single Or Bi-direction | Size Of Housing: | 1200*165*1000mm |
| Max Flow Rate: | 25 To 30 Person Per Minute | Material: | SS304 |
| High Light: | electric gate systems,speed gate turnstile |
||

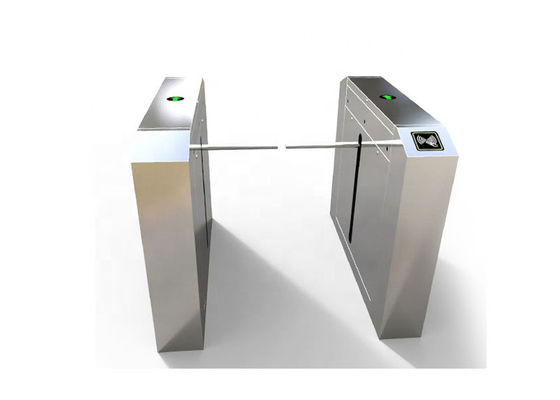

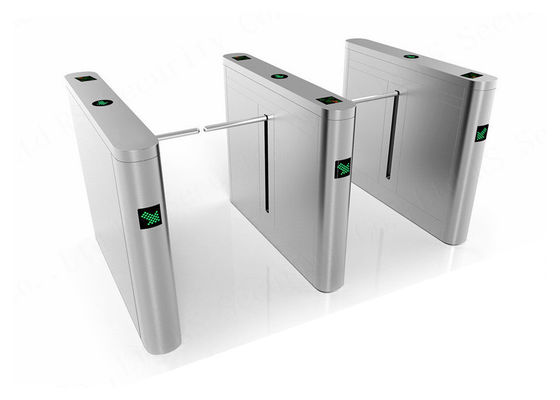

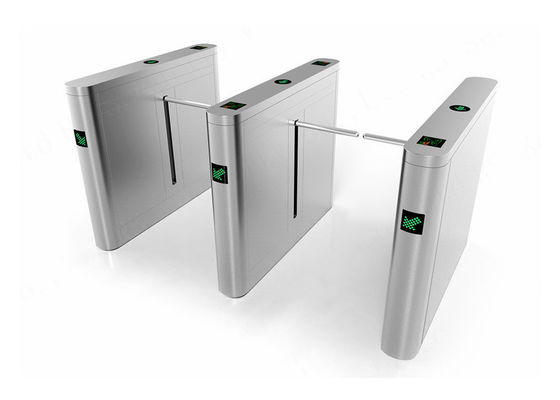

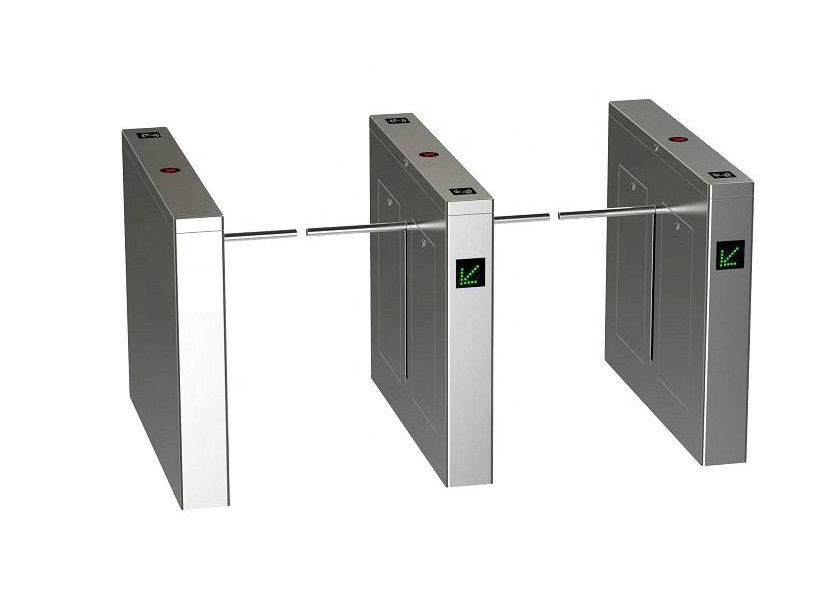

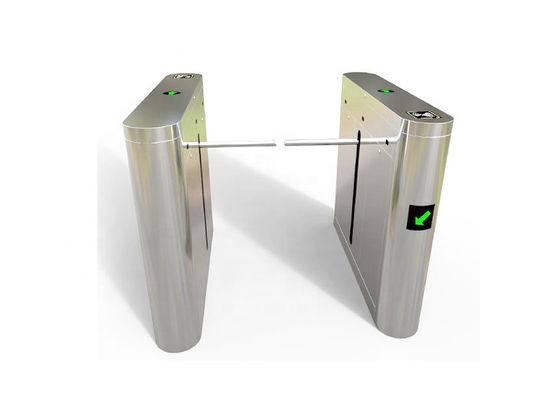

Flow control access control system fingerprint / face recognition SS304 drop arm gate
Introduction of Drop Arm Turnstile:
Sinomatic intelligent drop arm turnstile can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff.
Applications of Drop Arm Turnstile:
Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Features & functions
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function.
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gates)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).
9. Direction can be set as uni-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Support infrared photocell for anti-pinch and reset function
Specifications of Drop Arm Turnstile:
|
Power supply
|
AC220±10%V 50Hz/AC110±10% 60Hz
|
|
Power consumption
|
40W
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
|
Max flow rate
|
25 to 30 person per minute
|
|
Arm length
|
450mm(default)
|
|
Working temperature
|
-20°C~+60°C
|
|
Current
|
3A
|
|
Control circuit
|
DC24
|
|
Working humidity
|
0~95%RH
|
|
Time of opening or closing
|
less than 2S
|
Cases of Drop Arm Turnstile:
