Biometric Tripod Turnstile Gate

Large Image : Biometric Tripod Turnstile Gate

Product Details:

Place of Origin:	China mainland
Brand Name:	OEM
Certification:	CE/ ISO
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	5-10 working days after payment received
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

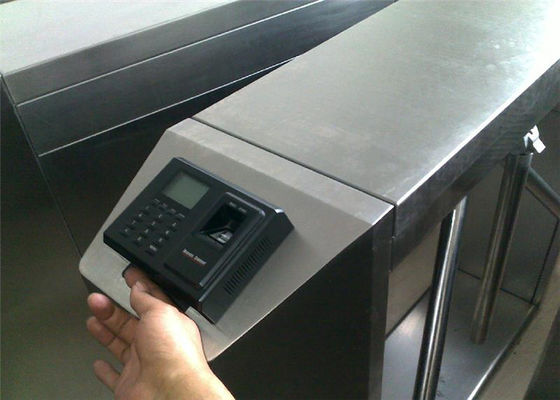

Control Device:	Fingerprint Scanner	Application:	Time Attendance
Arm Length:	510mm	Product Life:	5 Million Times
Housing Thickness:	1.2mm Thickness Stainless Steel	Housing Size:	1200300980mm
High Light:	tripod security gates , vertical tripod turnstile

Bridge type Electronic Remote Control Tripod Turnstile Gate Biometrics Fingerprint Scanner

Main features:

Flow direction guide with high bright led lamp.
High speed DSP technology, life up to 5 million times.
Malfunction self-detection, which is easy for operation and maintenance.
Anti-tail, prevent people follow pass without verified.
Anti-panic, door will keep opened automatically while power cut off.
One directional pass or bi-directional pass is settable.
With crash proof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash.
Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc.

Specifications of Tripod Turnstile Gate:

Item	Fingerprint scanner tripod turnstile
Lane width	550mm to 600mm
Power supply	AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption	40W
Access device input voltage	Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor	No motor
Max flow rate	25 to 30 person per minute
Arm length	510mm
Working temperature	-20°C~60°C

Product Application

Three arm Tripod Turnstile is suitable for office building,residential area,school,hospital,government building and so on.It is widely uesed for access control,pedestrian management with IC/ID cards,barcode tickets,fingerprint/face recognition etc.It's main special function is anti-collision,you can even use your foot kick the arm,and the turnstile still can work very well,very good quality.

Product description:

1. Fingerprint and RFID Semi automatic bi-direction tripod turnstile.
2. The housing of our tripod turnstile adopts SUS304 stainless steel materials; it is robust and durable design.
3. The standard electrical interfaces are flexible for integration with external systems;

4. They could be integrated with multiple devices like card and fingerprint readers.
5. Our tripod turnstiles can be used for access control, time attendance management applications and suitable for stations, wharfs, tourist attractions, exhibition and convention centers or special channel control for communities, factories, enterprises and public institutions etc.
6. Unified quality standards are implemented to ensure overall reliability, stability and fluency.

Product photo:

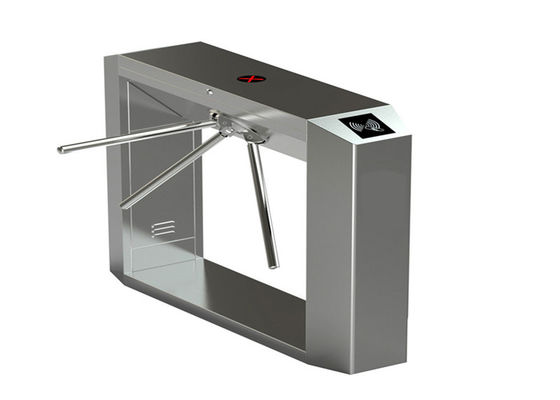

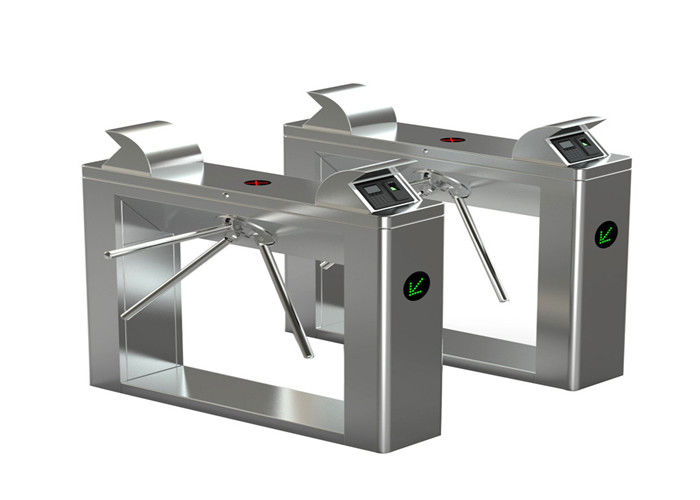

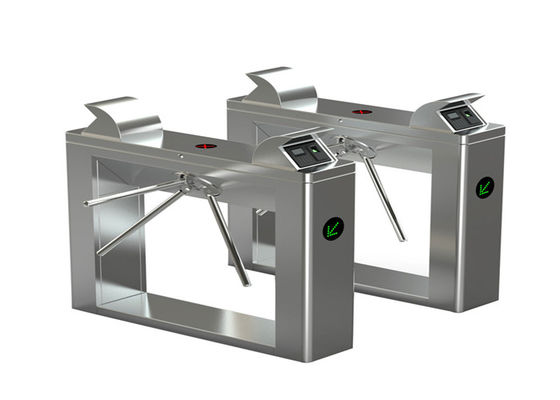

Biometric Tripod Turnstile Gate
