Anti - Pinch Auto Turnstiles Gate

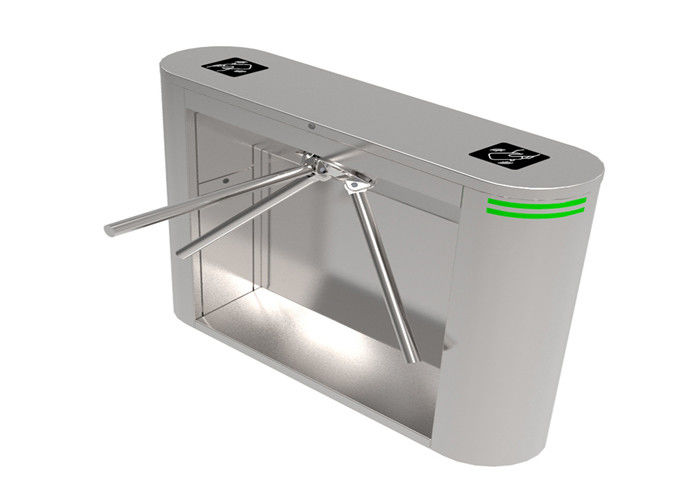

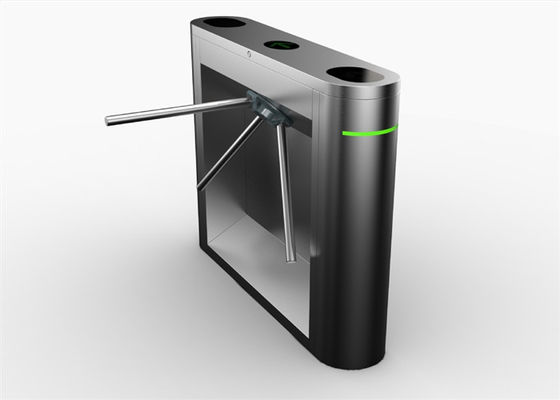

Large Image : Anti - Pinch Auto Turnstiles Gate

Product Details:

Place of Origin:	China mainland
Brand Name:	OEM
Certification:	CE/ ISO
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	5-10 working days after payment received
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Warranty:	2 Years	Direction:	Single Or Bi-direction
Material Of Housing:	304 Or 316 Stainless Steel	OEM/ODM:	Yes
Arm Length:	510mm	Power Supply:	AC220V
Working Temperature:	-20°C~60°C	Power Consumption:	40W
High Light:	access control turnstiles , turnstile security systems

Fitness center member control automatic tripod turnstile gate with green light indicator

Introduction of Tripod Turnstile Gate:

Tripod turnstile gate can adapt to different environment from building conditions to various access control entrance, its configurations are optional.

Applications of Tripod Turnstile Gate:

Tripod turnstile gate is fit for indoor usage (outdoor must with tent). They are optimized economical solution for railway and bus station, school, colleges, commercial building, concert, stadium, museum, bank and etc.

Features of Tripod Turnstile Gate:

With self-checking function, it is convenient for users to maintain and use.
Will alarm to prevent unauthorized users to access to secure area.
With anticollision function, the swing gate is locked without valid signal.
With anti-pinch function.
With automatic reset function. Pedestrians should pass within 5S after face recognition, otherwise the system will automatically cancel the permission.
Available to work together with various access control system. Such as IC card, ID card, bar code, QR code, face recognizer etc .
The whole system runs smoothly with low noise.

Specifications of Tripod Turnstile Gate:

Item	Specification
Power supply	AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption	40W
Access device input voltage	Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor	No motor
Max flow rate	25 to 30 person per minute
Arm length	510mm
Working temperature	-20°C~60°C
