Product Details:
Payment & Shipping Terms:
|
| Body Material: | SS304 | Arm Material: | SS304 Or Acrylic |
|---|---|---|---|
| Dimension: | 380x280x980mm | Arm Length: | 800mm |
| Gate Opening Speed: | 1.5s | Control Voltage: | DC24V |
| Motor Type: | Brushless | Direction: | Bi-directional |
| High Light: | turnstile swing gate,waist high turnstiles |
||
Anti-rust 304 Stainless Steel Vertical Swing Turnstile Gate For Crowd Control System
Description:
Swing Barrier, via access control system, is a stainless steel swing turnstile with innovate design, high quality and fast controlling for entry and exit. It can can effectively restrict unauthorized visitors while still maintaining a welcoming atmosphere. Stainless steel sliding barrier can be integrated with RFID card reader or biometric fingerprint reader for pedestrian access control gate. High door panel design prohibit attempt to climb over. it utilizes simplified modular design that allow easy changing of parts.it offers affordable price pedestrian gate solution for lift lobby of commercial, industrial or government building and other indoor premises.
Specifications of Pedestrian Swing Gate
| Product | swing barrier gate |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage | DC 24V (brush motor) |
| Max flow rate | 25 to 30 person per minute |
| Gate swing angle | 180 degree |
| Gate opening speed | 1.5s |
| Reset time when power on | 3s |
| Working temperature |
-20°C~+60°C |
Features of Pedestrian Swing Gate
1. Stainless steel housing, rain-proof laser opening, novel and beautiful.
2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.
3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5. The bicycle delay function: prevent the gate from hitting the bicycle.
6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8. Alarm function, in case of illegal intrusion and reverse intrusion.
9. Infrared sensor to prevent pinch pedestrians.
10. Anti-breakthrough function. The gate is locked automatically until opening signal received.
11. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
LED indicator.
12. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
13. Support infrared photocell for anti-pinch and reset function.
Product dimension

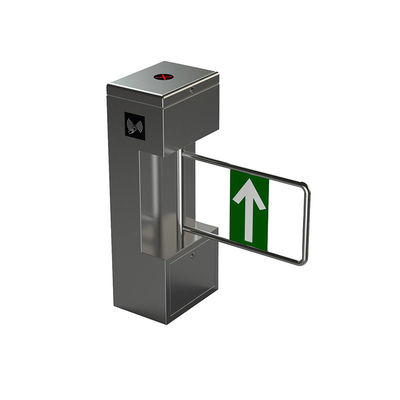

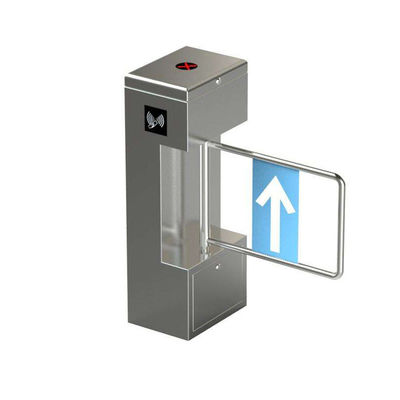

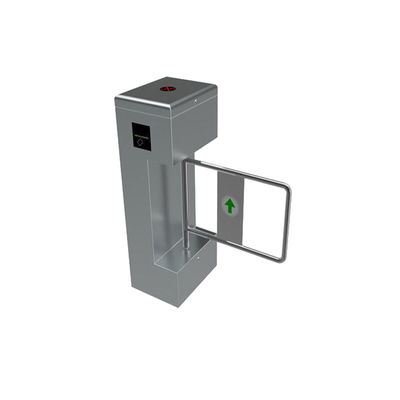

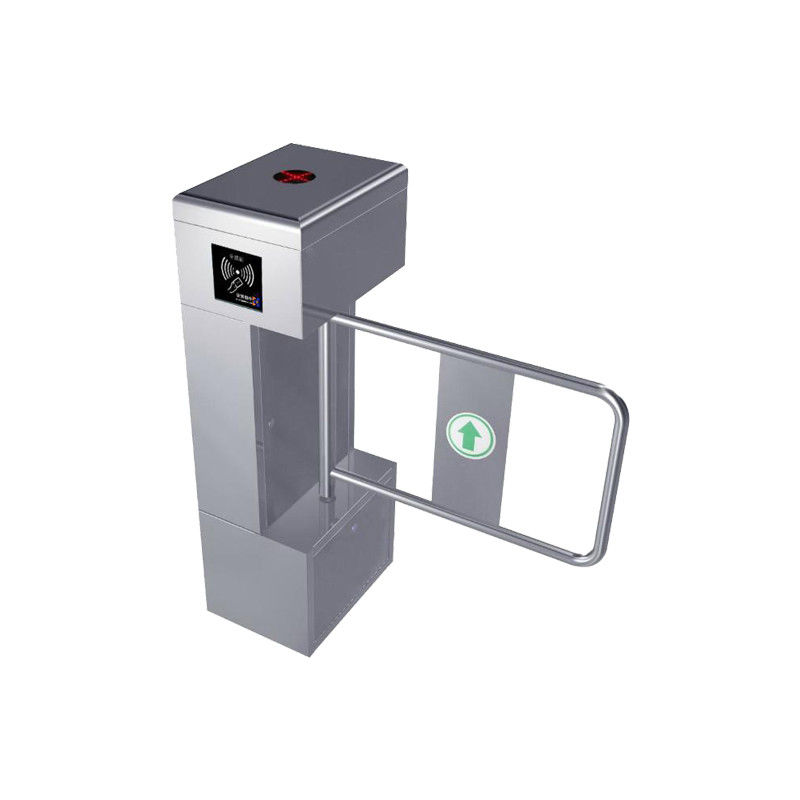

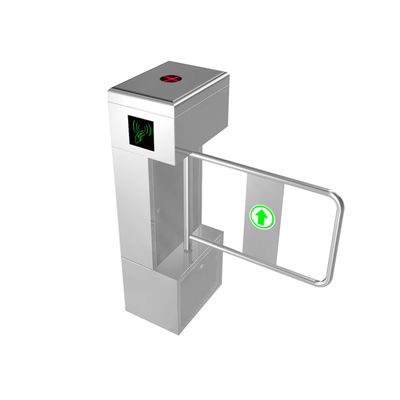

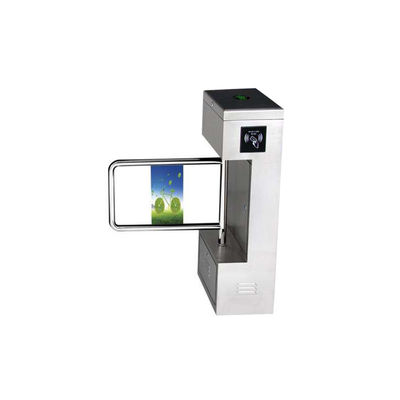

Product photo:
