Product Details:
Payment & Shipping Terms:
|
| Passage Width: | 550mm | Throughput Rate: | 30 Person/ Minute |
|---|---|---|---|
| Power Supply: | 100V-240V | Application: | Indoor/outdoor |
| Operational Voltage: | 24V | Force Capacity: | More Than 100KG |
| High Light: | tripod barrier gate,vertical tripod turnstile |
||
Security semi-automatic waterproof three arm motor-free tripod turnstile suitable for outdoor
Specifications of Tripod Turnstile Gate:
| Item | Specification |
| Power supply | 100V TO 240V |
| Power consumption | 40W |
| Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor | Semi-auto type (No need motor) |
| Max flow rate | 25 to 30 person per minute |
| Arm length | 500mm |
| Passage width | 550mm |
| Working temperature | -20°C~+60°C |
Features of Tripod Turnstile Gate:
1. GB 304 stainless steel sheet metal housing which is beautiful and durable.
2. Dimensions : 480 × 280 × 980 (mm).
3. Channel width: less than 550 (mm).
4. Brake lever steering : one-way, two-way (optional).
5. Control mode: manual/ automatic (optional).
6. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
7. Working environment: indoor(outdoor use shall stand awning).
8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact.
9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching.
10. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates.
11. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation.
Product dimension:

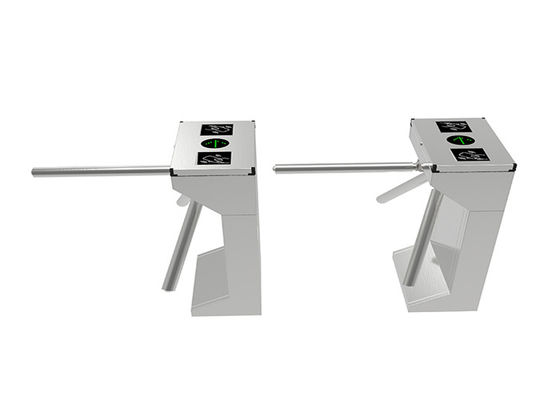

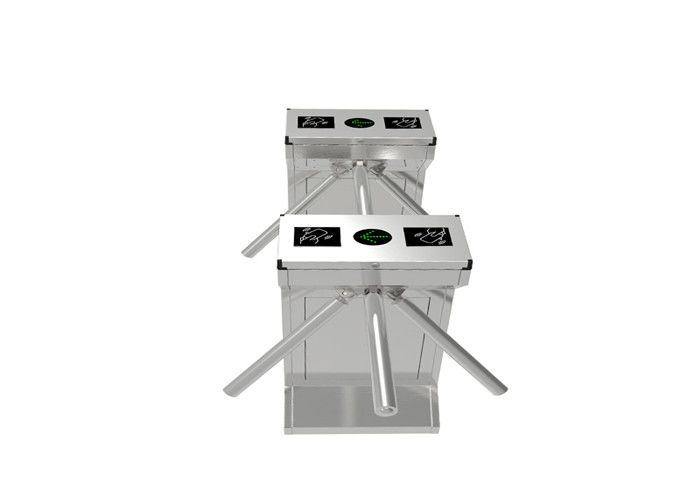

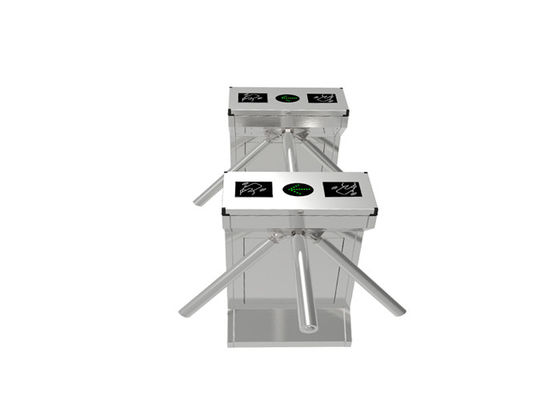

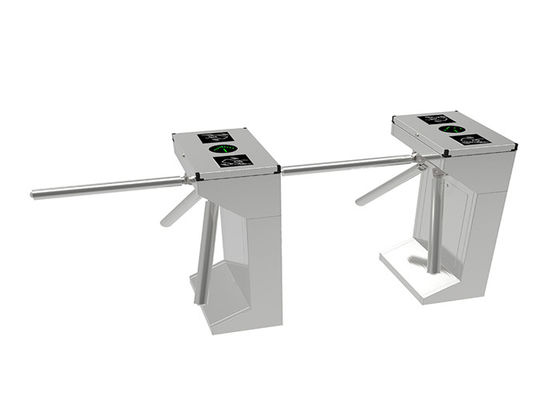

Product photo of different angles:
