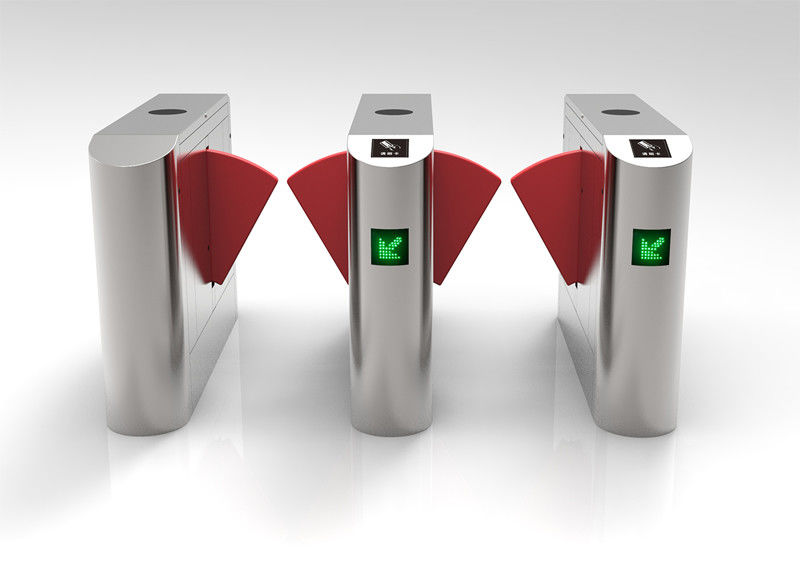

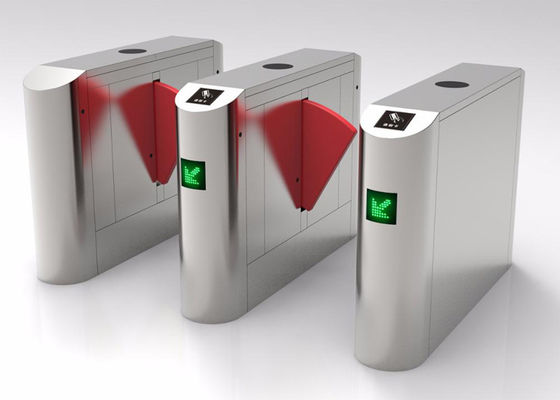

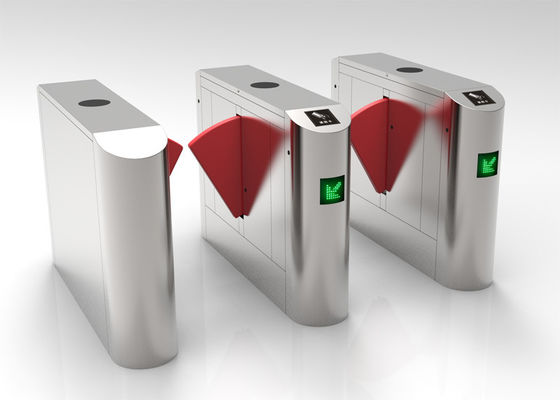

550mm Passage Flap Turnstile Gate
-
-
Large Image :
550mm Passage Flap Turnstile Gate
|
Product Details:
| Place of Origin: |
China mainland |
| Brand Name: |
OEM |
| Certification: |
CE/ ISO |
| Model Number: |
OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiable |
| Packaging Details: |
Wooden Box |
| Delivery Time: |
5-10 working days after payment received |
| Payment Terms: |
T/T, Western Union, MoneyGram |
| Supply Ability: |
3,000pcs per month |
|
Detailed Product Description
| Shell Material: |
304 Stainless Steel |
Power Supply: |
AC220V/110V |
| Control Voltage: |
DC24V |
Wing Length: |
About 270mm |
| Dimension: |
1200*280*980 Mm |
Working Temperature: |
-20°C~60°C |
| Opening / Closing Time: |
1s |
Reset Time When Power On: |
3s |
| High Light: |
turnstile flap barrier, pedestrian barrier gate |
304 stainless steel shell high temperature and corrosion resistance intelligence motherboard flap barrier gate system
Introduction of Flap Barrier Gate
Flap barrier gate integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, Flap Barrier Gate is able to achieve access intelligetilized control and management.
| Description |
Parameters |
| Lane Width |
550-600mm |
| IP |
IP54 |
| Pass Speed |
30 persons/min |
| Power supply |
AC220V/110V,50/60Hz |
| Drive Mode |
Motor drive |
| Max Power Consumption |
200W |
| Opening time |
0.4S |
| Humidity |
≤90% coagulation free |
| Noise |
≤50dB |
| Service Life |
5,000,000 cycles |
| Outside packing |
130x40x116 cm |
| Working Environment |
-20°C~+60°C |
| Gross Weight |
100KGS |

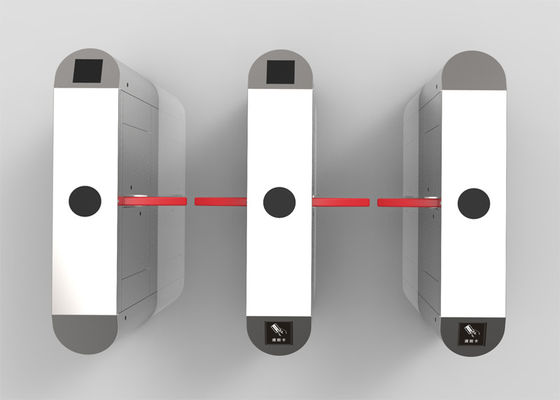

PRODUCT DIMENSION
Features of Flap Barrier Gate
- The whole system runs smoothly, long-life performance, high operation dependability and fast response.
- Alarm function, in case of illegal intrusion and reverse intrusion.
- Infrared sensor to prevent pinch pedestrians.
- Anti-breakthrough function. The gate is locked automatically until opening signal received.
- Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
- Anti-shock function, the arm is automatically locked when no open signal is received.
- Telescopic arms are adjustable synchronously (for double pendulum)
- With automatic reset function. After the switch is opened, the system will automatically cancel the user's permission for the pass when there is no pass within the specified time.The reset time is adjustable from 1s to 60s (the system default time is 10s). After the power is cut off, the channel is automatically opened (in accordance with fire protection requirements), and the power-on channel is automatically closed.
- Infrared sensor reset, infrared sensor anti-trap function (configure 5 pairs of infrared)
- It can be connected with a variety of devices such as access control systems, consumer systems, electronic ticket systems, biometric systems, and electrostatic testers.
- The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.
- Remote control and management can be achieved directly through the management computer.
Case of Flap Barrier Gate
