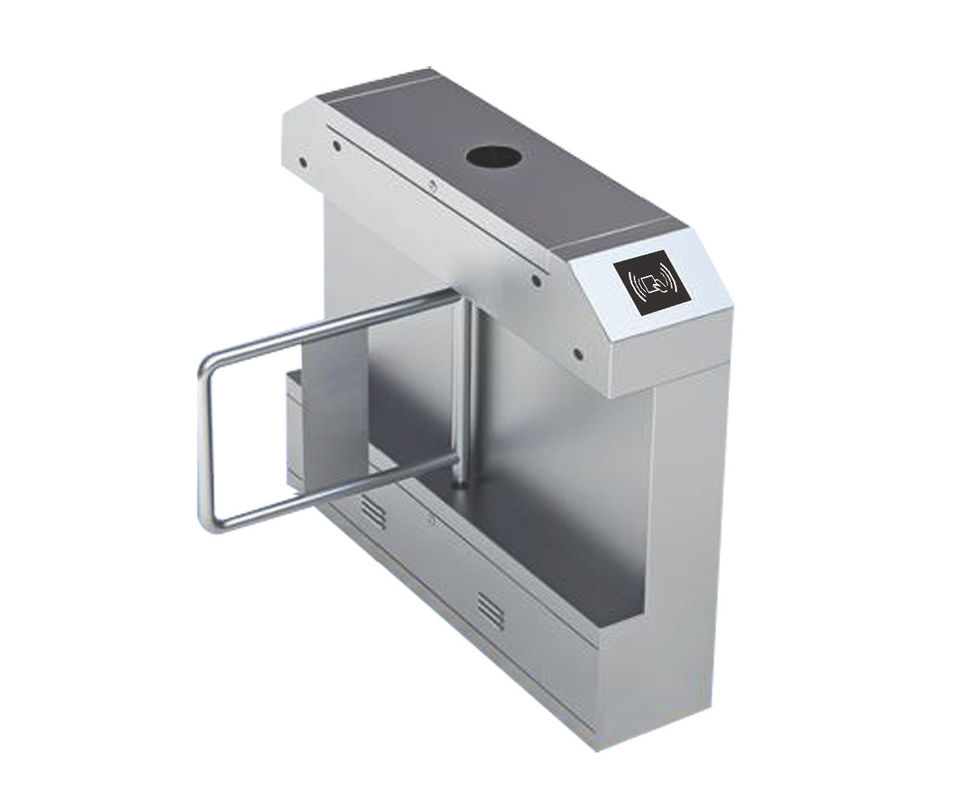

530mm Arm Automatic Systems Turnstiles

Big Swing Automatic Systems Turnstiles RFID Card Pedestrian Turnstile Gate

Usage way: The turnstile provides a basic gate to control access smoothly and effectively by basic operation, and also prevent illegal in and out. The machine is well in design, rustproof, durable and can resist external destroy.

1. Automatic Small Swing turnstile

1.1 Technology speciation:
Framework: 304 Grade Stainless Steel
Specification: 1200*280*1000mm
Weight: 65kg
Swing Arms length:530mm
Logic voltage: 24v
1.2. Function:
1.2.1.Single/double walkway---controlled in one direction or both
1.2.2.A valid lock action can allow one passage at one time
Normally open---the machine will unlock when a valid signal is received
1.2.3.It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.

1.2.4 Rotation indication: can rotate 15 degree angle to indicate pass.
1.3. Emergency configuration:
The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
1.4. Interface: one standard port-RS485 or Switch signal.
1.5. Can choose to add Control panel with count and LED digital function.

Stand tripod way: Automatic
1.6. Traffic-light:
A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
1.7. Transit speed: 20——30 persons per minute
1.8. Work environment:
Indoor/outdoor
Temperature: --40 below degree to 70 degree
1.9. Applications:
Station/exhibition/airport/subway/government/market and so on
